强化学习

import random
import gymnasium as gym  # 彻底替换为gymnasium，不再用旧gym
import numpy as np
import collections
from tqdm import tqdm
import torch
import torch.nn.functional as F
import matplotlib.pyplot as plt

# ===== 经验回放池=====
class ReplayBuffer:
    ''' 经验回放池 '''    def __init__(self, capacity):
        self.buffer = collections.deque(maxlen=capacity)  # 队列,先进先出

    def add(self, state, action, reward, next_state, done):  # 将数据加入buffer
        self.buffer.append((state, action, reward, next_state, done))

    def sample(self, batch_size):  # 从buffer中采样数据,数量为batch_size
        transitions = random.sample(self.buffer, batch_size)
        state, action, reward, next_state, done = zip(*transitions)
        return np.array(state), action, reward, np.array(next_state), done

    def size(self):  # 目前buffer中数据的数量
        return len(self.buffer)

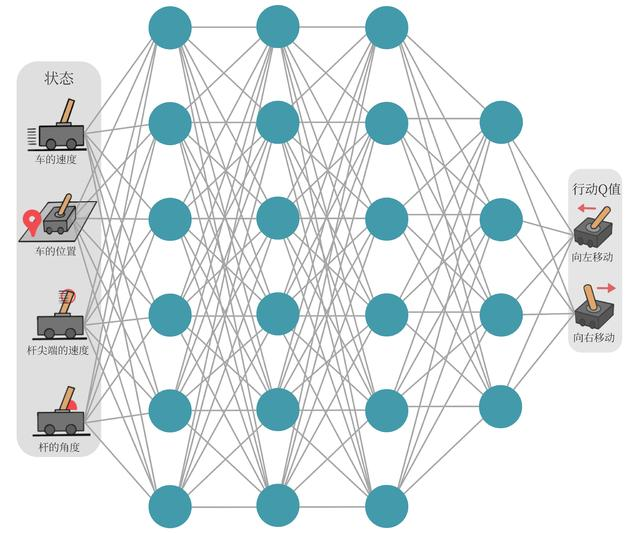

# ===== Q网络=====
class Qnet(torch.nn.Module):
    ''' 只有一层隐藏层的Q网络 '''    def __init__(self, state_dim, hidden_dim, action_dim):
        super(Qnet, self).__init__()
        self.fc1 = torch.nn.Linear(state_dim, hidden_dim)
        self.fc2 = torch.nn.Linear(hidden_dim, action_dim)

    def forward(self, x):
        x = F.relu(self.fc1(x))  # 隐藏层使用ReLU激活函数
        return self.fc2(x)

# ===== DQN算法=====
class DQN:
    ''' DQN算法 '''    def __init__(self, state_dim, hidden_dim, action_dim, learning_rate, gamma,
                 epsilon, target_update, device):
        self.action_dim = action_dim
        self.q_net = Qnet(state_dim, hidden_dim,
                          self.action_dim).to(device)  # Q网络
        # 目标网络
        self.target_q_net = Qnet(state_dim, hidden_dim,
                                 self.action_dim).to(device)
        # 使用Adam优化器
        self.optimizer = torch.optim.Adam(self.q_net.parameters(),
                                          lr=learning_rate)
        self.gamma = gamma  # 折扣因子
        self.epsilon = epsilon  # epsilon-贪婪策略
        self.target_update = target_update  # 目标网络更新频率
        self.count = 0  # 计数器,记录更新次数
        self.device = device

    def take_action(self, state):  # epsilon-贪婪策略采取动作
        if np.random.random() < self.epsilon:
            action = np.random.randint(self.action_dim)
        else:
            state = torch.tensor([state], dtype=torch.float).to(self.device)
            action = self.q_net(state).argmax().item()
        return action

    def update(self, transition_dict):
        states = torch.tensor(transition_dict['states'],
                              dtype=torch.float).to(self.device)
        actions = torch.tensor(transition_dict['actions']).view(-1, 1).to(
            self.device)
        rewards = torch.tensor(transition_dict['rewards'],
                               dtype=torch.float).view(-1, 1).to(self.device)
        next_states = torch.tensor(transition_dict['next_states'],
                                   dtype=torch.float).to(self.device)
        dones = torch.tensor(transition_dict['dones'],
                             dtype=torch.float).view(-1, 1).to(self.device)

        q_values = self.q_net(states).gather(1, actions)  # Q值
        # 下个状态的最大Q值
        max_next_q_values = self.target_q_net(next_states).max(1)[0].view(
            -1, 1)
        q_targets = rewards + self.gamma * max_next_q_values * (1 - dones
                                                                )  # TD误差目标
        dqn_loss = torch.mean(F.mse_loss(q_values, q_targets))  # 均方误差损失函数
        self.optimizer.zero_grad()  # PyTorch中默认梯度会累积,这里需要显式将梯度置为0
        dqn_loss.backward()  # 反向传播更新参数
        self.optimizer.step()

        if self.count % self.target_update == 0:
            self.target_q_net.load_state_dict(
                self.q_net.state_dict())  # 更新目标网络
        self.count += 1

# ===== 主程序（小车悬臂的问题）=====
if __name__ == "__main__":
    # 1. 配置参数
    lr = 2e-3               # 学习率
    num_episodes = 500      # 训练总回合数
    hidden_dim = 128        # Q网络隐藏层维度
    gamma = 0.98            # 折扣因子
    epsilon = 0.01          # epsilon-贪婪策略
    target_update = 10      # 目标网络更新频率
    buffer_size = 10000     # 经验回放池容量
    batch_size = 64         # 批次大小
    device = torch.device("cuda") if torch.cuda.is_available() else torch.device("cpu")

    # 2. 创建环境（修正1：用CartPole-v1，移除seed()，改用reset设置种子）
    env = gym.make("CartPole-v1", render_mode="human")  # render_mode="human" 方便测试时可视化
    state_dim = env.observation_space.shape[0]
    action_dim = env.action_space.n

    # 3. 初始化组件
    replay_buffer = ReplayBuffer(buffer_size)
    agent = DQN(state_dim, hidden_dim, action_dim, lr, gamma, epsilon, target_update, device)

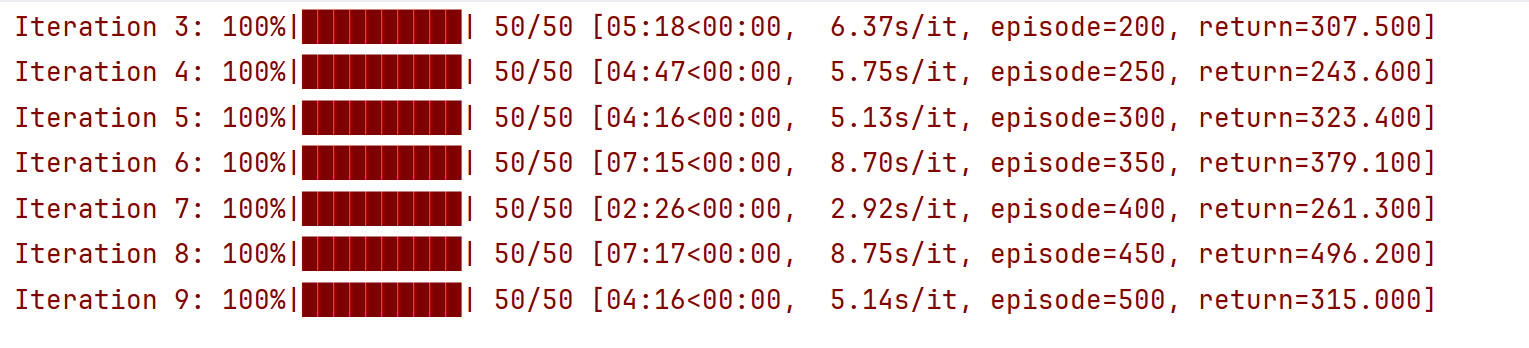

    # 4. 训练循环
    return_list = []
    for i in range(10):

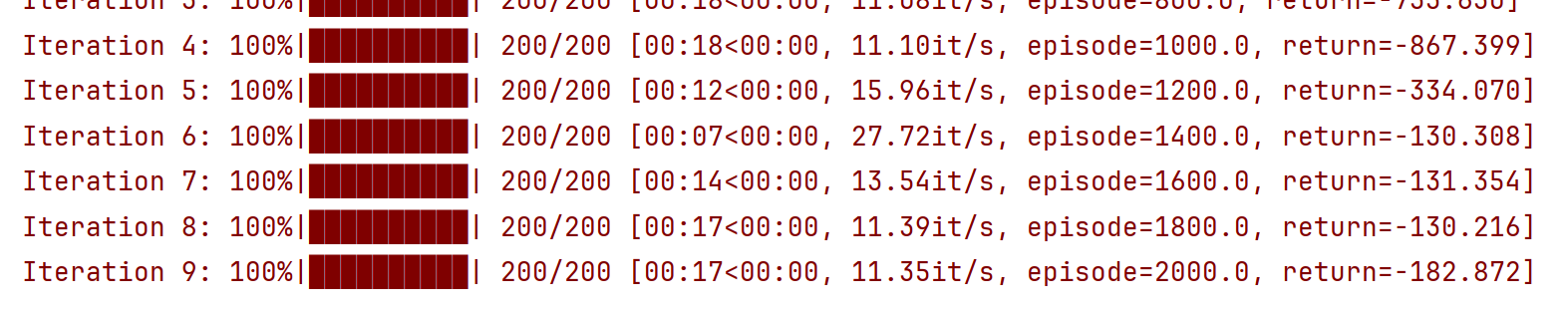

        with tqdm(total=int(num_episodes/10), desc='Iteration %d' % i) as pbar:
            for i_episode in range(int(num_episodes/10)):
                episode_return = 0
                # 修正2：用reset(seed=0)设置随机种子，替代旧的env.seed(0)
                state, _ = env.reset(seed=0)  # Gymnasium的reset返回(state, info)，并支持seed参数
                done = False
                while not done:
                    action = agent.take_action(state)
                    # 修正3：Gymnasium的step返回(next_state, reward, terminated, truncated, info)
                    next_state, reward, terminated, truncated, _ = env.step(action)
                    # 合并终止条件（terminated是任务完成，truncated是步数超限）
                    done = terminated or truncated
                    replay_buffer.add(state, action, reward, next_state, done)
                    state = next_state
                    episode_return += reward

                    if replay_buffer.size() > batch_size:
                        b_s, b_a, b_r, b_ns, b_d = replay_buffer.sample(batch_size)
                        transition_dict = {
                            'states': b_s,
                            'actions': b_a,
                            'next_states': b_ns,
                            'rewards': b_r,
                            'dones': b_d
                        }
                        agent.update(transition_dict)
                return_list.append(episode_return)

                if (i_episode+1) % 10 == 0:
                    pbar.set_postfix({
                        'episode':
                        '%d' % (num_episodes/10 * i + i_episode + 1),
                        'return':
                        '%.3f' % np.mean(return_list[-10:])
                    })
                pbar.update(1)

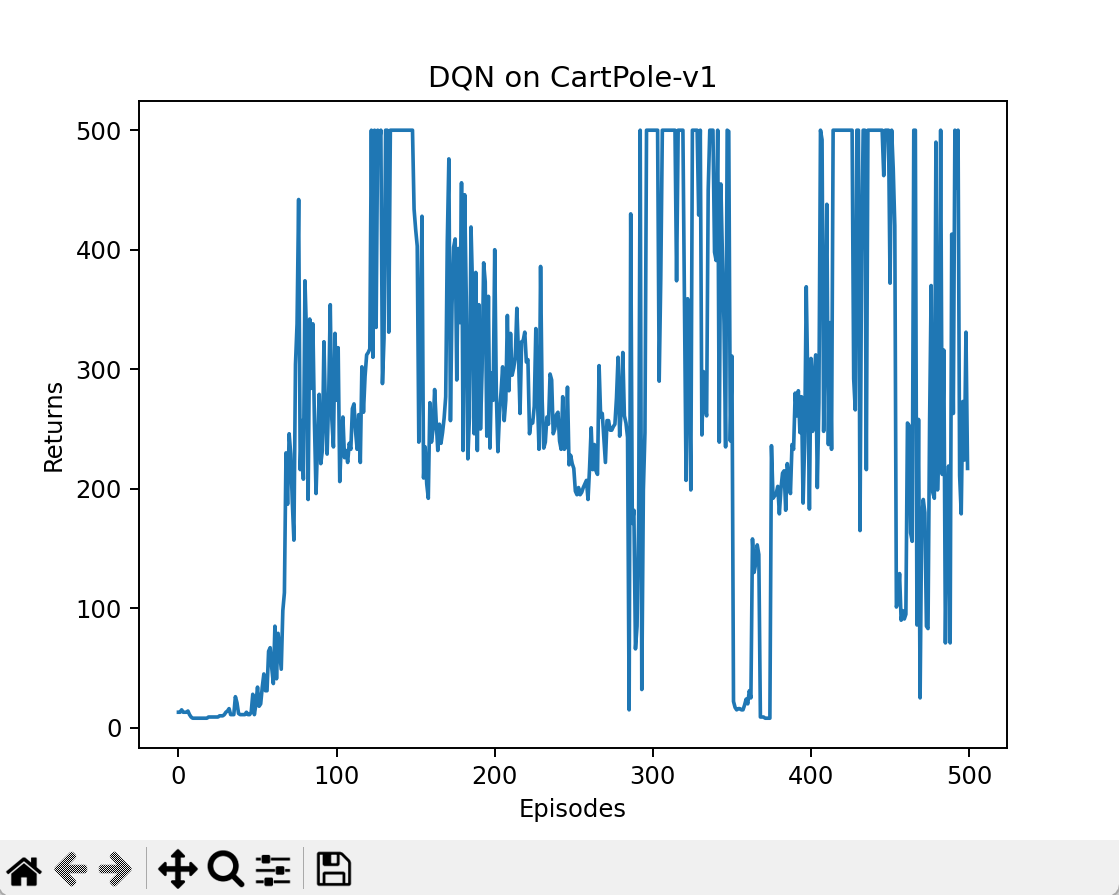

    # 5. 可视化奖励曲线
    episodes_list = list(range(len(return_list)))
    plt.plot(episodes_list, return_list)
    plt.xlabel('Episodes')
    plt.ylabel('Returns')
    plt.title('DQN on CartPole-v1')
    plt.show()

    # 6. 测试智能体（可选）
    test_episodes = 5
    for _ in range(test_episodes):
        state, _ = env.reset(seed=0)
        done = False
        while not done:
            action = agent.take_action(state)
            next_state, reward, terminated, truncated, _ = env.step(action)
            done = terminated or truncated
            state = next_state
    env.close()

class ConvolutionalQnet(torch.nn.Module):
    ''' 加入卷积层的Q网络 '''
    def __init__(self, action_dim, in_channels=4):
        super(ConvolutionalQnet, self).__init__()
        self.conv1 = torch.nn.Conv2d(in_channels, 32, kernel_size=8, stride=4)
        self.conv2 = torch.nn.Conv2d(32, 64, kernel_size=4, stride=2)
        self.conv3 = torch.nn.Conv2d(64, 64, kernel_size=3, stride=1)
        self.fc4 = torch.nn.Linear(7 * 7 * 64, 512)
        self.head = torch.nn.Linear(512, action_dim)

    def forward(self, x):
        x = x / 255
        x = F.relu(self.conv1(x))
        x = F.relu(self.conv2(x))
        x = F.relu(self.conv3(x))
        x = F.relu(self.fc4(x))
        return self.head(x)

import gymnasium as gym
import torch
import torch.nn.functional as F
import numpy as np
import matplotlib.pyplot as plt
from tqdm import tqdm
import random  # 新增：用于设置全局随机种子


# ===== 策略网络（不变）=====

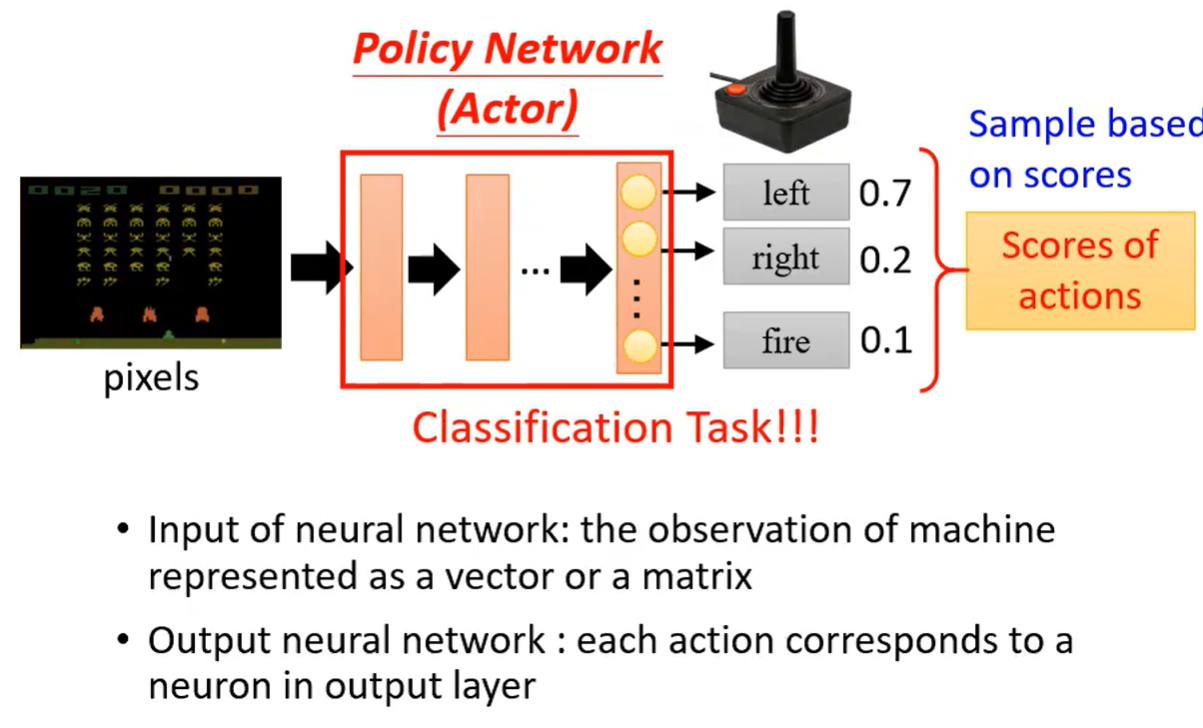

class PolicyNet(torch.nn.Module):
    def __init__(self, state_dim, hidden_dim, action_dim):
        super(PolicyNet, self).__init__()
        self.fc1 = torch.nn.Linear(state_dim, hidden_dim)
        self.fc2 = torch.nn.Linear(hidden_dim, action_dim)

    def forward(self, x):
        x = F.relu(self.fc1(x))
        return F.softmax(self.fc2(x), dim=1)


# ===== REINFORCE算法（不变）=====
class REINFORCE:
    def __init__(self, state_dim, hidden_dim, action_dim, learning_rate, gamma,
                 device):
        self.policy_net = PolicyNet(state_dim, hidden_dim,
                                    action_dim).to(device)
        self.optimizer = torch.optim.Adam(self.policy_net.parameters(),
                                          lr=learning_rate)  # 使用Adam优化器
        self.gamma = gamma  # 折扣因子
        self.device = device

    def take_action(self, state):  # 根据动作概率分布随机采样
        state = torch.tensor([state], dtype=torch.float).to(self.device)
        probs = self.policy_net(state)
        action_dist = torch.distributions.Categorical(probs)
        action = action_dist.sample()
        return action.item()

    def update(self, transition_dict):
        reward_list = transition_dict['rewards']
        state_list = transition_dict['states']
        action_list = transition_dict['actions']

        G = 0
        self.optimizer.zero_grad()
        for i in reversed(range(len(reward_list))):  # 从最后一步算起
            reward = reward_list[i]
            state = torch.tensor([state_list[i]],
                                 dtype=torch.float).to(self.device)
            action = torch.tensor([action_list[i]]).view(-1, 1).to(self.device)
            log_prob = torch.log(self.policy_net(state).gather(1, action))
            G = self.gamma * G + reward
            loss = -log_prob * G  # 每一步的损失函数
            loss.backward()  # 反向传播计算梯度
        self.optimizer.step()  # 梯度下降


# ===== 主程序（核心修正部分）=====
if __name__ == "__main__":
    # 1. 配置参数（不变）
    learning_rate = 1e-3
    num_episodes = 1000
    hidden_dim = 128
    gamma = 0.98
    device = torch.device("cuda") if torch.cuda.is_available() else torch.device("cpu")


    # 2. 设置全局随机种子（新增：保证实验可复现，替代原env.seed(0)）
    def set_seed(seed=0):
        random.seed(seed)
        np.random.seed(seed)
        torch.manual_seed(seed)
        if torch.cuda.is_available():
            torch.cuda.manual_seed(seed)
            torch.cuda.manual_seed_all(seed)


    set_seed(0)

    # 3. 创建环境（修正1：升级为CartPole-v1，避免过时警告）
    env_name = "CartPole-v1"
    env = gym.make(env_name)

    # 4. 移除env.seed(0)（核心修正2：该方法已废弃）
    # env.seed(0)  # 删掉这行！

    # 5. 获取环境维度（不变）
    state_dim = env.observation_space.shape[0]
    action_dim = env.action_space.n
    agent = REINFORCE(state_dim, hidden_dim, action_dim, learning_rate, gamma, device)

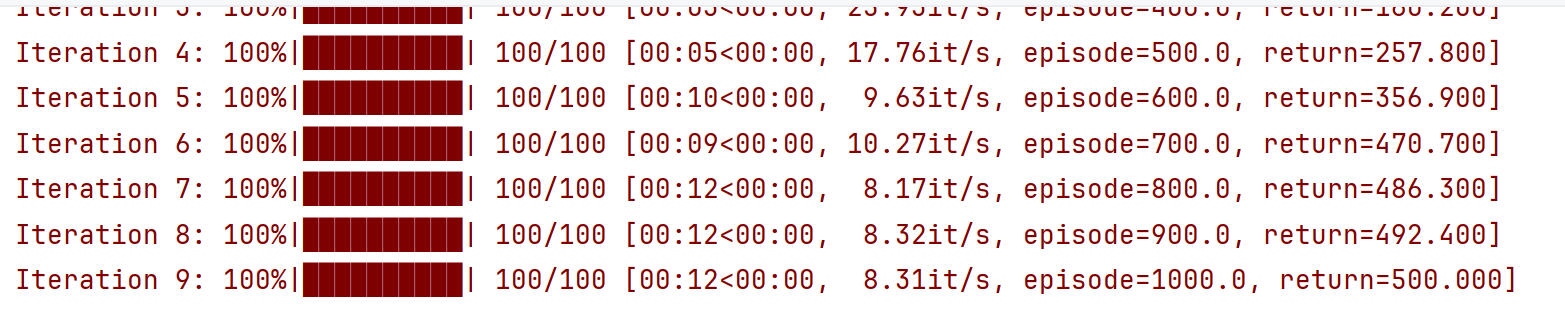

    # 6. 训练循环（核心修正3：适配reset/step返回值）
    return_list = []
    for i in range(10):
        with tqdm(total=int(num_episodes / 10), desc='Iteration %d' % i) as pbar:
            for i_episode in range(int(num_episodes / 10)):
                episode_return = 0
                transition_dict = {
                    'states': [],
                    'actions': [],
                    'next_states': [],
                    'rewards': [],
                    'dones': []
                }
                # 修正4：Gymnasium的reset返回(state, info)，并设置seed保证可复现
                state, info = env.reset(seed=0)
                done = False
                while not done:
                    action = agent.take_action(state)
                    # 修正5：Gymnasium的step返回5个值（next_state, reward, terminated, truncated, info）
                    next_state, reward, terminated, truncated, info = env.step(action)
                    # 修正6：合并终止条件（terminated=任务完成，truncated=步数超限）
                    done = terminated or truncated

                    # 以下逻辑不变
                    transition_dict['states'].append(state)
                    transition_dict['actions'].append(action)
                    transition_dict['next_states'].append(next_state)
                    transition_dict['rewards'].append(reward)
                    transition_dict['dones'].append(done)
                    state = next_state
                    episode_return += reward
                return_list.append(episode_return)
                agent.update(transition_dict)

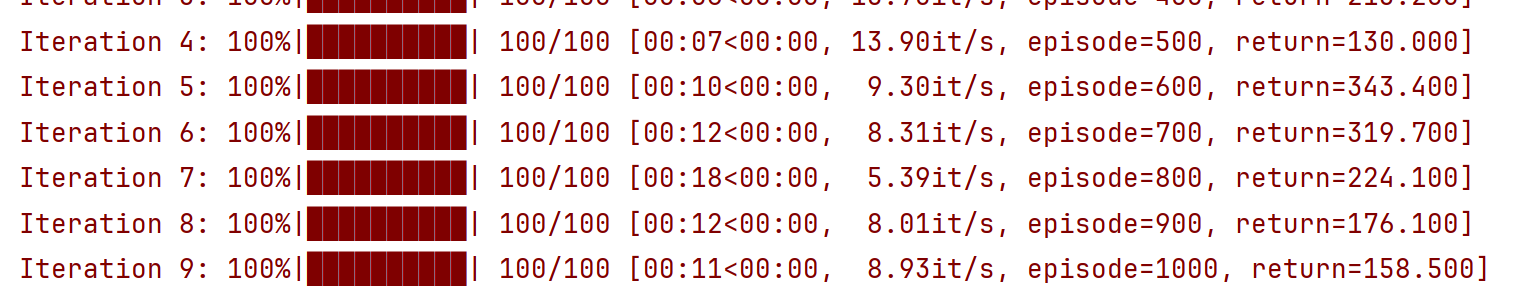

                if (i_episode + 1) % 10 == 0:
                    pbar.set_postfix({
                        'episode':
                            '%d' % (num_episodes / 10 * i + i_episode + 1),
                        'return':
                            '%.3f' % np.mean(return_list[-10:])
                    })
                pbar.update(1)

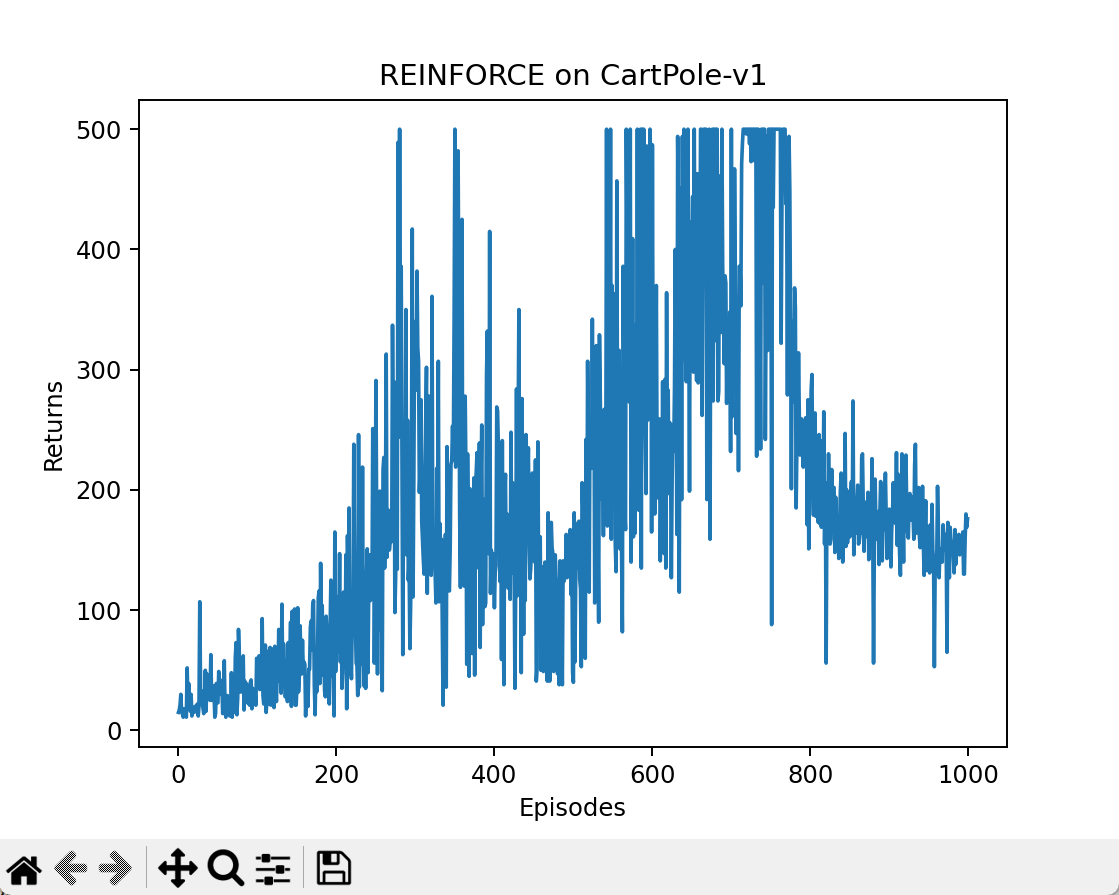

    # 新增：可视化训练结果（可选，方便看效果）
    episodes_list = list(range(len(return_list)))
    plt.plot(episodes_list, return_list)
    plt.xlabel('Episodes')
    plt.ylabel('Returns')
    plt.title('REINFORCE on CartPole-v1')
    plt.show()

    # 关闭环境
    env.close()

import gymnasium as gym
import torch
import torch.nn.functional as F
import numpy as np
import matplotlib.pyplot as plt
from tqdm import tqdm
import random  # 新增：设置全局随机种子

# ===== 1. 补全缺失的ValueNet类（核心！原代码未定义）=====

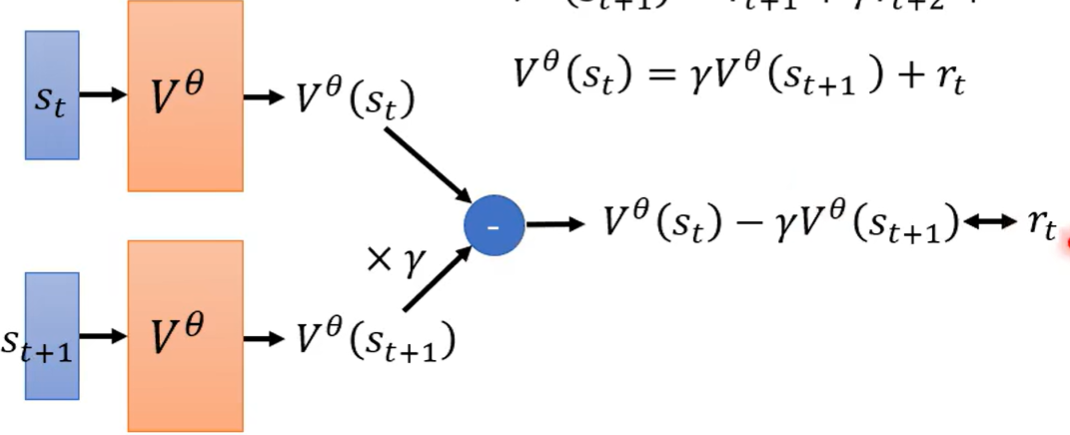

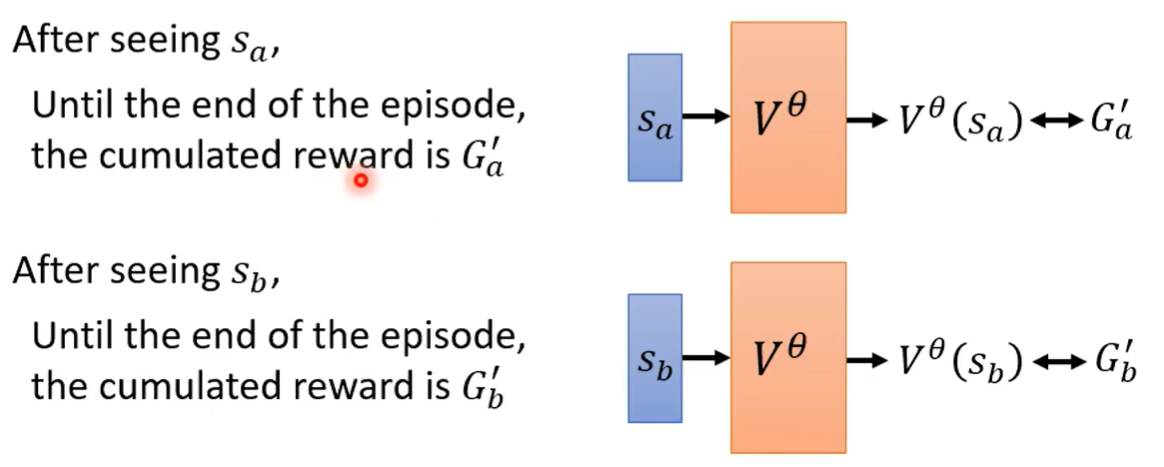

class ValueNet(torch.nn.Module):
    def __init__(self, state_dim, hidden_dim):
        super(ValueNet, self).__init__()
        self.fc1 = torch.nn.Linear(state_dim, hidden_dim)
        self.fc2 = torch.nn.Linear(hidden_dim, 1)  # 输出状态价值（标量）

    def forward(self, x):
        x = F.relu(self.fc1(x))
        return self.fc2(x)  # 输出V(s)

# ===== 2. 策略网络（不变）=====
class PolicyNet(torch.nn.Module):
    def __init__(self, state_dim, hidden_dim, action_dim):
        super(PolicyNet, self).__init__()
        self.fc1 = torch.nn.Linear(state_dim, hidden_dim)
        self.fc2 = torch.nn.Linear(hidden_dim, action_dim)

    def forward(self, x):
        x = F.relu(self.fc1(x))
        return F.softmax(self.fc2(x), dim=1)  # 输出动作概率分布

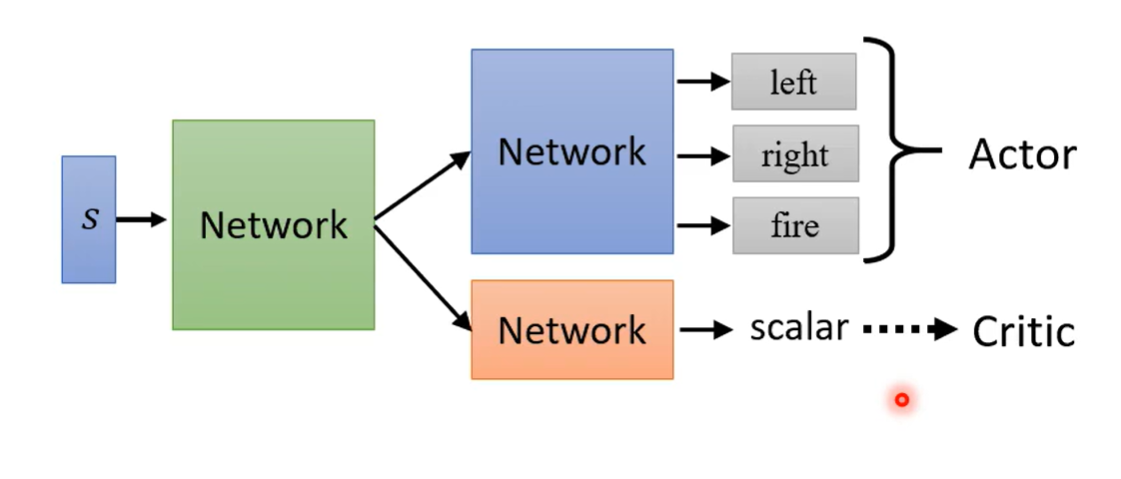

# ===== 3. Actor-Critic算法（仅适配设备，逻辑不变）=====

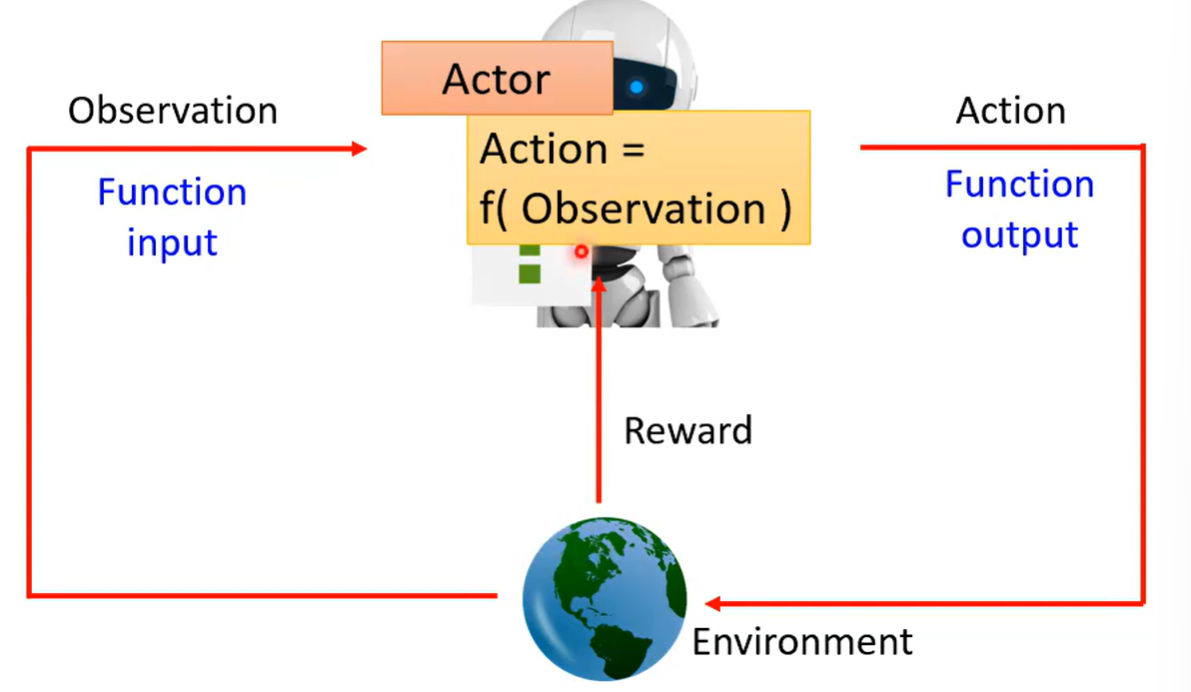

class ActorCritic:
    def __init__(self, state_dim, hidden_dim, action_dim, actor_lr, critic_lr,
                 gamma, device):
        # Actor：策略网络（选动作）
        self.actor = PolicyNet(state_dim, hidden_dim, action_dim).to(device)
        # Critic：价值网络（评估状态价值）
        self.critic = ValueNet(state_dim, hidden_dim).to(device)
        # 优化器（分开优化Actor和Critic）
        self.actor_optimizer = torch.optim.Adam(self.actor.parameters(), lr=actor_lr)
        self.critic_optimizer = torch.optim.Adam(self.critic.parameters(), lr=critic_lr)
        self.gamma = gamma  # 折扣因子
        self.device = device

    def take_action(self, state):  # 根据策略网络采样动作
        state = torch.tensor([state], dtype=torch.float).to(self.device)
        probs = self.actor(state)
        action_dist = torch.distributions.Categorical(probs)
        action = action_dist.sample()
        return action.item()

    def update(self, transition_dict):
        # 解析经验数据
        states = torch.tensor(transition_dict['states'], dtype=torch.float).to(self.device)
        actions = torch.tensor(transition_dict['actions']).view(-1, 1).to(self.device)
        rewards = torch.tensor(transition_dict['rewards'], dtype=torch.float).view(-1, 1).to(self.device)
        next_states = torch.tensor(transition_dict['next_states'], dtype=torch.float).to(self.device)
        dones = torch.tensor(transition_dict['dones'], dtype=torch.float).view(-1, 1).to(self.device)

        # Critic更新：时序差分（TD）误差优化价值网络
        td_target = rewards + self.gamma * self.critic(next_states) * (1 - dones)  # TD目标
        td_delta = td_target - self.critic(states)  # TD误差（优势函数近似）
        critic_loss = torch.mean(F.mse_loss(self.critic(states), td_target.detach()))  # 均方误差损失

        # Actor更新：用TD误差指导策略梯度（降低方差）
        log_probs = torch.log(self.actor(states).gather(1, actions))
        actor_loss = torch.mean(-log_probs * td_delta.detach())  # 策略梯度损失

        # 反向传播+参数更新
        self.actor_optimizer.zero_grad()
        self.critic_optimizer.zero_grad()
        actor_loss.backward()
        critic_loss.backward()
        self.actor_optimizer.step()
        self.critic_optimizer.step()

# ===== 4. 替代rl_utils.train_on_policy_agent（自定义训练循环，避免依赖缺失）=====
def train_on_policy_agent(env, agent, num_episodes):
    return_list = []  # 记录每回合奖励
    for i in range(10):  # 分10个迭代段，用tqdm显示进度
        with tqdm(total=int(num_episodes/10), desc=f'Iteration {i}') as pbar:
            for i_episode in range(int(num_episodes/10)):
                episode_return = 0
                transition_dict = {'states': [], 'actions': [], 'next_states': [], 'rewards': [], 'dones': []}
                # 重置环境（适配Gymnasium：返回(state, info)，设置seed保证可复现）
                state, info = env.reset(seed=0)
                done = False
                while not done:
                    action = agent.take_action(state)
                    # 执行动作（适配Gymnasium：step返回5个值）
                    next_state, reward, terminated, truncated, info = env.step(action)
                    done = terminated or truncated  # 合并终止条件
                    # 存储经验
                    transition_dict['states'].append(state)
                    transition_dict['actions'].append(action)
                    transition_dict['next_states'].append(next_state)
                    transition_dict['rewards'].append(reward)
                    transition_dict['dones'].append(done)
                    # 更新状态和奖励
                    state = next_state
                    episode_return += reward
                # 记录奖励+更新策略（On-Policy：每回合结束后更新）
                return_list.append(episode_return)
                agent.update(transition_dict)
                # 进度条更新
                if (i_episode+1) % 10 == 0:
                    pbar.set_postfix({'episode': f'{num_episodes/10*i + i_episode+1}', 'return': f'{np.mean(return_list[-10:]):.3f}'})
                pbar.update(1)
    return return_list

# ===== 5. 主程序（核心修正：适配Gymnasium+补全配置）=====
if __name__ == "__main__":
    # 超参数配置
    actor_lr = 1e-3
    critic_lr = 1e-2
    num_episodes = 1000
    hidden_dim = 128
    gamma = 0.98
    device = torch.device("cuda") if torch.cuda.is_available() else torch.device("cpu")

    # 设置全局随机种子（替代env.seed(0)，保证实验可复现）
    def set_seed(seed=0):
        random.seed(seed)
        np.random.seed(seed)
        torch.manual_seed(seed)
        if torch.cuda.is_available():
            torch.cuda.manual_seed(seed)
            torch.cuda.manual_seed_all(seed)
    set_seed(0)

    # 创建环境（升级为CartPole-v1，避免过时警告）
    env_name = 'CartPole-v1'
    env = gym.make(env_name)
    state_dim = env.observation_space.shape[0]
    action_dim = env.action_space.n

    # 初始化智能体+开始训练
    agent = ActorCritic(state_dim, hidden_dim, action_dim, actor_lr, critic_lr, gamma, device)
    return_list = train_on_policy_agent(env, agent, num_episodes)

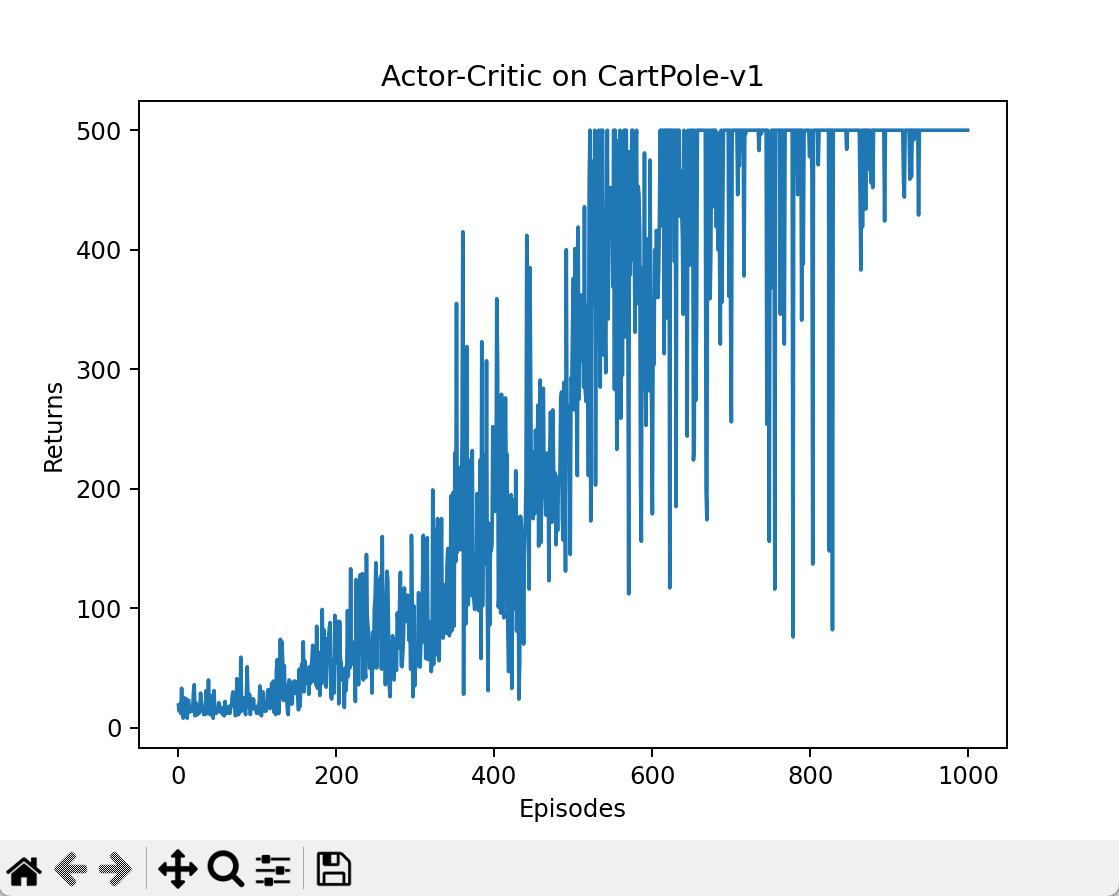

    # 可视化训练结果
    episodes_list = list(range(len(return_list)))
    plt.plot(episodes_list, return_list)
    plt.xlabel('Episodes')
    plt.ylabel('Returns')
    plt.title('Actor-Critic on CartPole-v1')
    plt.show()

    # 关闭环境
    env.close()

import torch
import numpy as np
import gymnasium as gym
import matplotlib.pyplot as plt
import torch.nn.functional as F
import copy
from tqdm import tqdm

# 仅补全缺失的ValueNet（原代码调用但未定义）
class ValueNet(torch.nn.Module):
    def __init__(self, state_dim, hidden_dim):
        super(ValueNet, self).__init__()
        self.fc1 = torch.nn.Linear(state_dim, hidden_dim)
        self.fc2 = torch.nn.Linear(hidden_dim, 1)

    def forward(self, x):
        x = F.relu(self.fc1(x))
        return self.fc2(x)

# 仅补全缺失的compute_advantage（原代码调用但未定义）
def compute_advantage(gamma, lmbda, td_delta):
    td_delta = td_delta.detach().numpy()
    advantage_list = []
    advantage = 0.0
    for delta in reversed(td_delta):
        advantage = gamma * lmbda * advantage + delta
        advantage_list.append(advantage)
    advantage_list.reverse()
    return torch.tensor(advantage_list, dtype=torch.float)

# 保留你原代码的PolicyNetContinuous
class PolicyNetContinuous(torch.nn.Module):
    def __init__(self, state_dim, hidden_dim, action_dim):
        super(PolicyNetContinuous, self).__init__()
        self.fc1 = torch.nn.Linear(state_dim, hidden_dim)
        self.fc_mu = torch.nn.Linear(hidden_dim, action_dim)
        self.fc_std = torch.nn.Linear(hidden_dim, action_dim)

    def forward(self, x):
        x = F.relu(self.fc1(x))
        mu = 2.0 * torch.tanh(self.fc_mu(x))
        std = F.softplus(self.fc_std(x))
        return mu, std

# 保留你原代码的TRPOContinuous
class TRPOContinuous:
    def __init__(self, hidden_dim, state_space, action_space, lmbda,
                 kl_constraint, alpha, critic_lr, gamma, device):
        state_dim = state_space.shape[0]
        action_dim = action_space.shape[0]
        self.actor = PolicyNetContinuous(state_dim, hidden_dim,
                                         action_dim).to(device)
        self.critic = ValueNet(state_dim, hidden_dim).to(device)
        self.critic_optimizer = torch.optim.Adam(self.critic.parameters(),
                                                 lr=critic_lr)
        self.gamma = gamma
        self.lmbda = lmbda
        self.kl_constraint = kl_constraint
        self.alpha = alpha
        self.device = device

    def take_action(self, state):
        state = torch.tensor([state], dtype=torch.float).to(self.device)
        mu, std = self.actor(state)
        action_dist = torch.distributions.Normal(mu, std)
        action = action_dist.sample()
        return [action.item()]

    def hessian_matrix_vector_product(self,
                                      states,
                                      old_action_dists,
                                      vector,
                                      damping=0.1):
        mu, std = self.actor(states)
        new_action_dists = torch.distributions.Normal(mu, std)
        kl = torch.mean(
            torch.distributions.kl.kl_divergence(old_action_dists,
                                                 new_action_dists))
        kl_grad = torch.autograd.grad(kl,
                                      self.actor.parameters(),
                                      create_graph=True)
        kl_grad_vector = torch.cat([grad.view(-1) for grad in kl_grad])
        kl_grad_vector_product = torch.dot(kl_grad_vector, vector)
        grad2 = torch.autograd.grad(kl_grad_vector_product,
                                    self.actor.parameters())
        grad2_vector = torch.cat(
            [grad.contiguous().view(-1) for grad in grad2])
        return grad2_vector + damping * vector

    def conjugate_gradient(self, grad, states, old_action_dists):
        x = torch.zeros_like(grad)
        r = grad.clone()
        p = grad.clone()
        rdotr = torch.dot(r, r)
        for i in range(10):
            Hp = self.hessian_matrix_vector_product(states, old_action_dists,
                                                    p)
            alpha = rdotr / torch.dot(p, Hp)
            x += alpha * p
            r -= alpha * Hp
            new_rdotr = torch.dot(r, r)
            if new_rdotr < 1e-10:
                break
            beta = new_rdotr / rdotr
            p = r + beta * p
            rdotr = new_rdotr
        return x

    def compute_surrogate_obj(self, states, actions, advantage, old_log_probs,
                              actor):
        mu, std = actor(states)
        action_dists = torch.distributions.Normal(mu, std)
        log_probs = action_dists.log_prob(actions)
        ratio = torch.exp(log_probs - old_log_probs)
        return torch.mean(ratio * advantage)

    def line_search(self, states, actions, advantage, old_log_probs,
                    old_action_dists, max_vec):
        old_para = torch.nn.utils.convert_parameters.parameters_to_vector(
            self.actor.parameters())
        old_obj = self.compute_surrogate_obj(states, actions, advantage,
                                             old_log_probs, self.actor)
        for i in range(15):
            coef = self.alpha**i
            new_para = old_para + coef * max_vec
            new_actor = copy.deepcopy(self.actor)
            torch.nn.utils.convert_parameters.vector_to_parameters(
                new_para, new_actor.parameters())
            mu, std = new_actor(states)
            new_action_dists = torch.distributions.Normal(mu, std)
            kl_div = torch.mean(
                torch.distributions.kl.kl_divergence(old_action_dists,
                                                     new_action_dists))
            new_obj = self.compute_surrogate_obj(states, actions, advantage,
                                                 old_log_probs, new_actor)
            if new_obj > old_obj and kl_div < self.kl_constraint:
                return new_para
        return old_para

    def policy_learn(self, states, actions, old_action_dists, old_log_probs,
                     advantage):
        surrogate_obj = self.compute_surrogate_obj(states, actions, advantage,
                                                   old_log_probs, self.actor)
        grads = torch.autograd.grad(surrogate_obj, self.actor.parameters())
        obj_grad = torch.cat([grad.view(-1) for grad in grads]).detach()
        descent_direction = self.conjugate_gradient(obj_grad, states,
                                                    old_action_dists)
        Hd = self.hessian_matrix_vector_product(states, old_action_dists,
                                                descent_direction)
        max_coef = torch.sqrt(2 * self.kl_constraint /
                              (torch.dot(descent_direction, Hd) + 1e-8))
        new_para = self.line_search(states, actions, advantage, old_log_probs,
                                    old_action_dists,
                                    descent_direction * max_coef)
        torch.nn.utils.convert_parameters.vector_to_parameters(
            new_para, self.actor.parameters())

    def update(self, transition_dict):
        states = torch.tensor(transition_dict['states'],
                              dtype=torch.float).to(self.device)
        actions = torch.tensor(transition_dict['actions'],
                               dtype=torch.float).view(-1, 1).to(self.device)
        rewards = torch.tensor(transition_dict['rewards'],
                               dtype=torch.float).view(-1, 1).to(self.device)
        next_states = torch.tensor(transition_dict['next_states'],
                                   dtype=torch.float).to(self.device)
        dones = torch.tensor(transition_dict['dones'],
                             dtype=torch.float).view(-1, 1).to(self.device)
        rewards = (rewards + 8.0) / 8.0
        td_target = rewards + self.gamma * self.critic(next_states) * (1 -
                                                                       dones)
        td_delta = td_target - self.critic(states)
        advantage = compute_advantage(self.gamma, self.lmbda,
                                      td_delta.cpu()).to(self.device)
        mu, std = self.actor(states)
        old_action_dists = torch.distributions.Normal(mu.detach(),
                                                      std.detach())
        old_log_probs = old_action_dists.log_prob(actions)
        critic_loss = torch.mean(
            F.mse_loss(self.critic(states), td_target.detach()))
        self.critic_optimizer.zero_grad()
        critic_loss.backward()
        self.critic_optimizer.step()
        self.policy_learn(states, actions, old_action_dists, old_log_probs,
                          advantage)

# 仅替换rl_utils.train_on_policy_agent（极简版，适配Gymnasium）
def train_on_policy_agent(env, agent, num_episodes):
    return_list = []
    for i in range(10):
        with tqdm(total=int(num_episodes/10), desc=f'Iteration {i}') as pbar:
            for i_episode in range(int(num_episodes/10)):
                episode_return = 0
                transition_dict = {'states': [], 'actions': [], 'next_states': [], 'rewards': [], 'dones': []}
                # 仅修改reset：适配Gymnasium返回值+设置seed
                state, info = env.reset(seed=0)
                done = False
                while not done:
                    action = agent.take_action(state)
                    # 仅修改step：适配Gymnasium返回值
                    next_state, reward, terminated, truncated, info = env.step(action)
                    done = terminated or truncated
                    transition_dict['states'].append(state)
                    transition_dict['actions'].append(action)
                    transition_dict['next_states'].append(next_state)
                    transition_dict['rewards'].append(reward)
                    transition_dict['dones'].append(done)
                    state = next_state
                    episode_return += reward
                return_list.append(episode_return)
                agent.update(transition_dict)
                if (i_episode + 1) % 10 == 0:
                    pbar.set_postfix({'episode': f'{num_episodes/10*i + i_episode+1}', 'return': f'{np.mean(return_list[-10:]):.3f}'})
                pbar.update(1)
    return return_list

# 仅替换rl_utils.moving_average（极简版）
def moving_average(x, window_size):
    return np.convolve(x, np.ones(window_size)/window_size, mode='valid')

# 保留你原代码的超参数和主逻辑，仅删除env.seed(0)
num_episodes = 2000
hidden_dim = 128
gamma = 0.9
lmbda = 0.9
critic_lr = 1e-2
kl_constraint = 0.00005
alpha = 0.5
device = torch.device("cuda") if torch.cuda.is_available() else torch.device("cpu")

env_name = 'Pendulum-v1'
env = gym.make(env_name)
# 仅删除：env.seed(0)
torch.manual_seed(0)
agent = TRPOContinuous(hidden_dim, env.observation_space, env.action_space,
                       lmbda, kl_constraint, alpha, critic_lr, gamma, device)
return_list = train_on_policy_agent(env, agent, num_episodes)

episodes_list = list(range(len(return_list)))

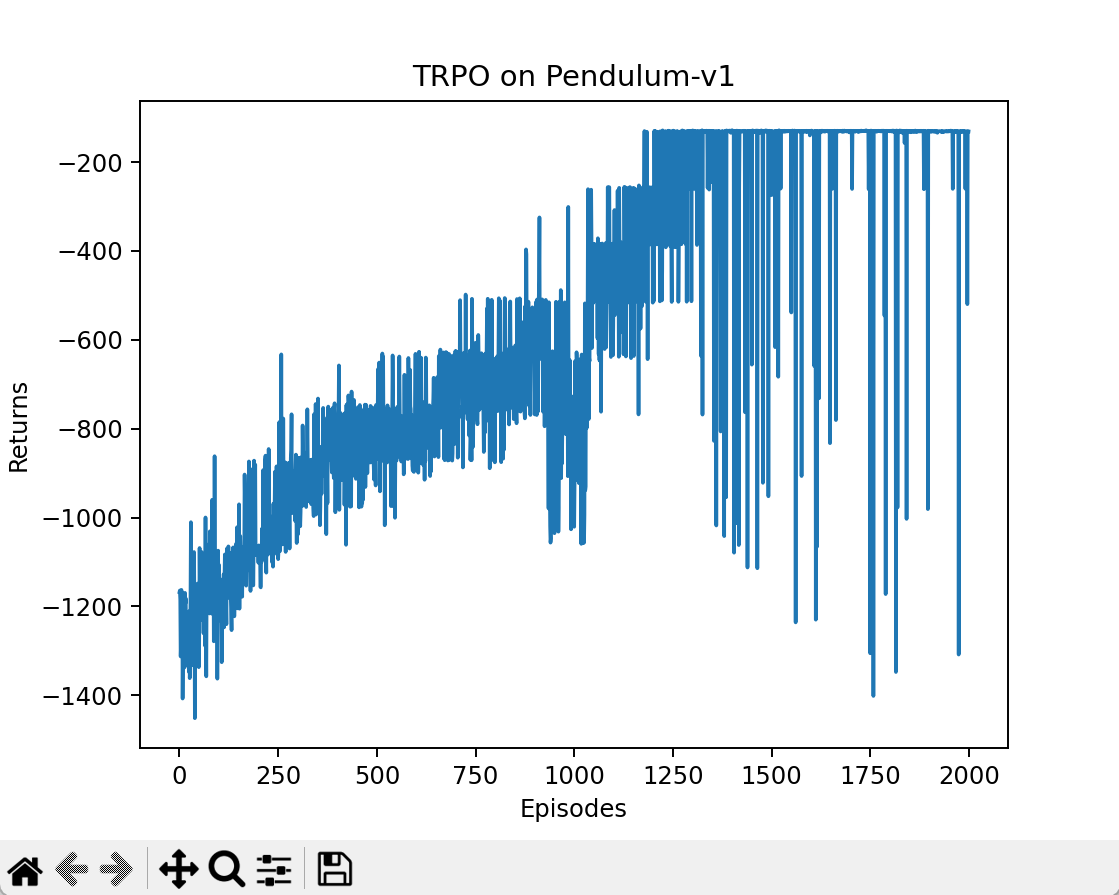

plt.plot(episodes_list, return_list)
plt.xlabel('Episodes')
plt.ylabel('Returns')
plt.title('TRPO on {}'.format(env_name))
plt.show()

# 适配moving_average输出长度（仅小修改）
mv_return = moving_average(return_list, 9)
plt.plot(episodes_list[4:-4], mv_return)  # 仅调整x轴长度匹配
plt.xlabel('Episodes')
plt.ylabel('Returns')
plt.title('TRPO on {}'.format(env_name))
plt.show()
